5 Axis Vertical Machining Center
您的位置: 首頁 > 機床產品 > 5 Axis Vertical Machining Center
3-4-5-axis CNC Vertical Machining Center
發(fā)布時間:2023-10-13瀏覽次數:104

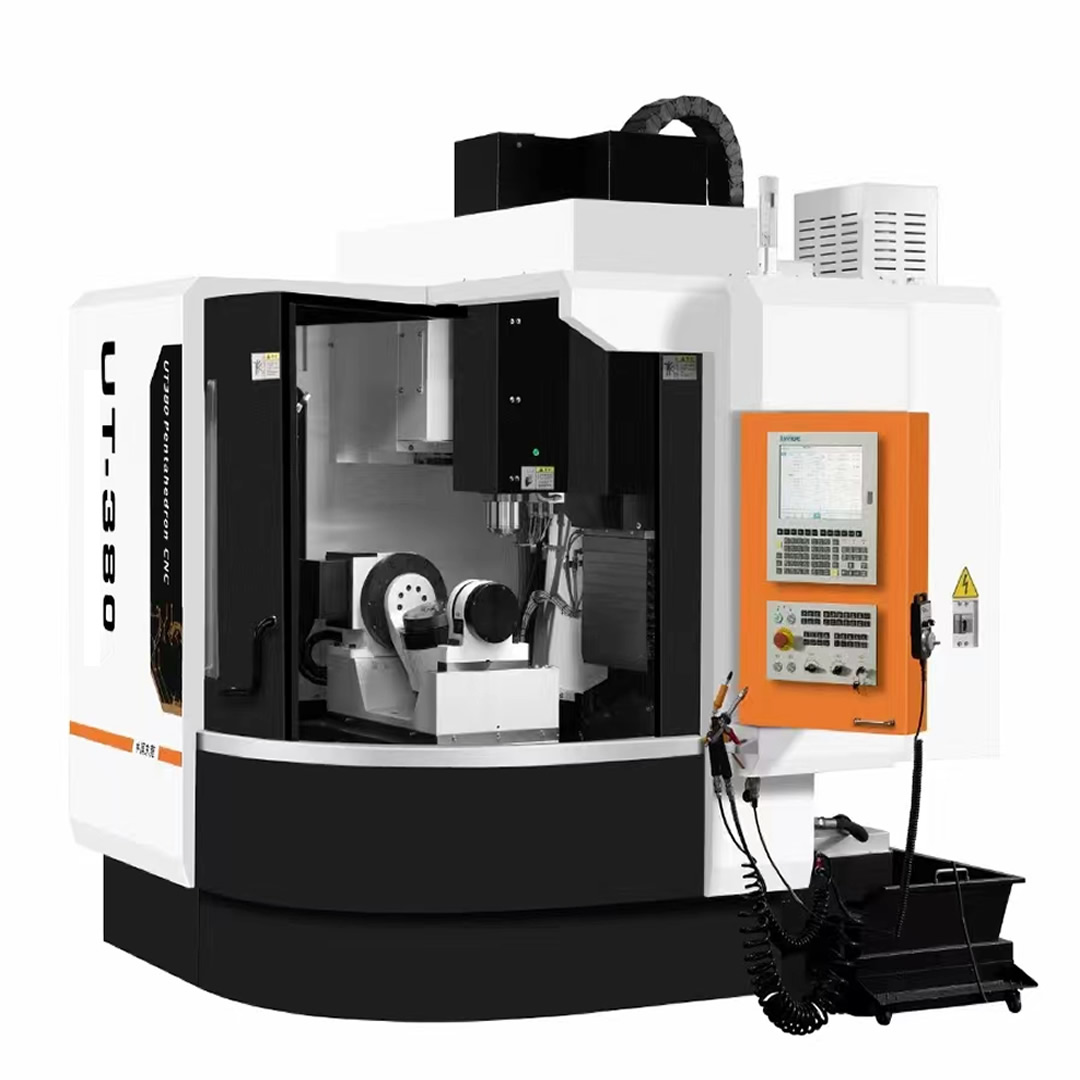

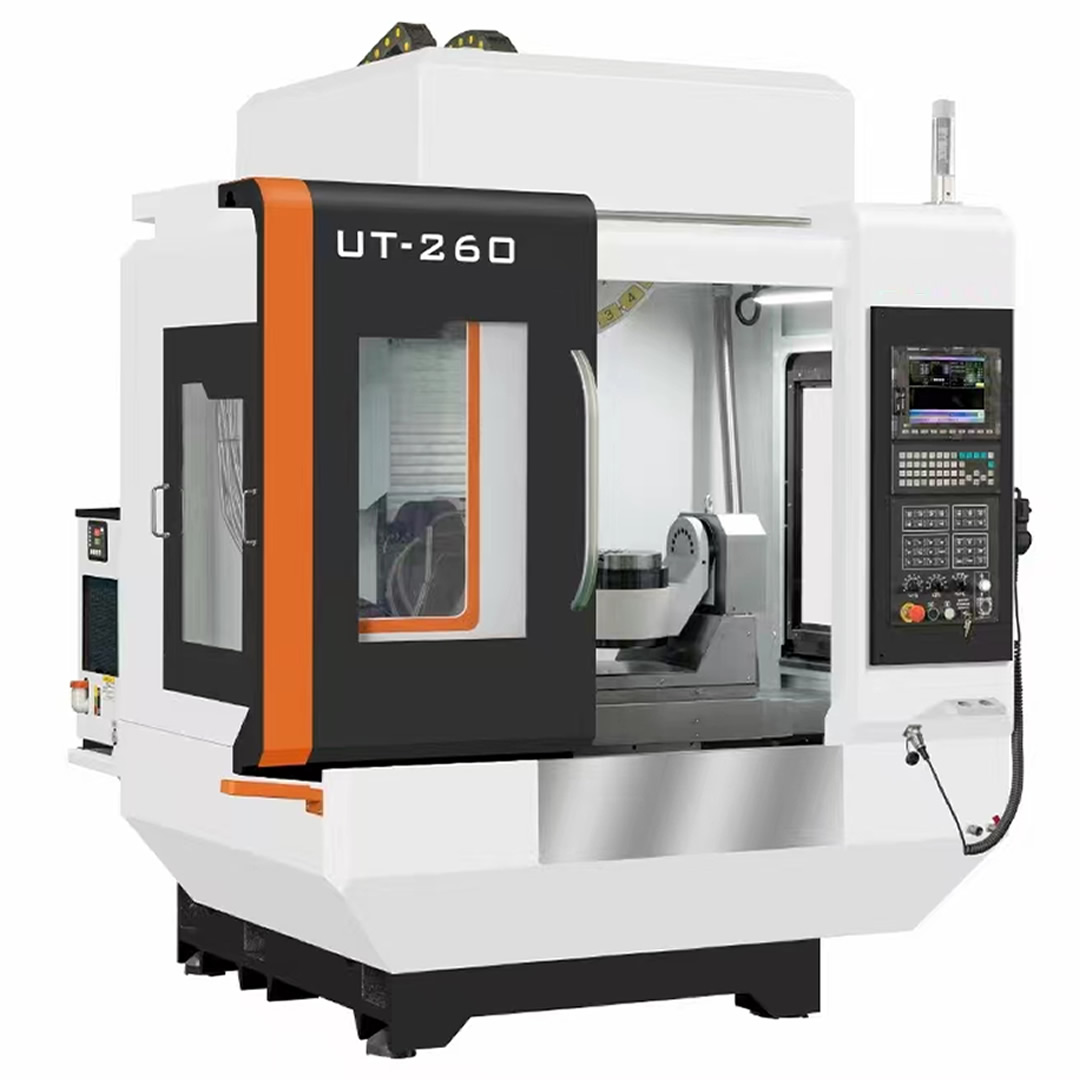

  • 5 Axis Vertical CNC Machining Center
  • 5 Axis Vertical CNC Machining Center

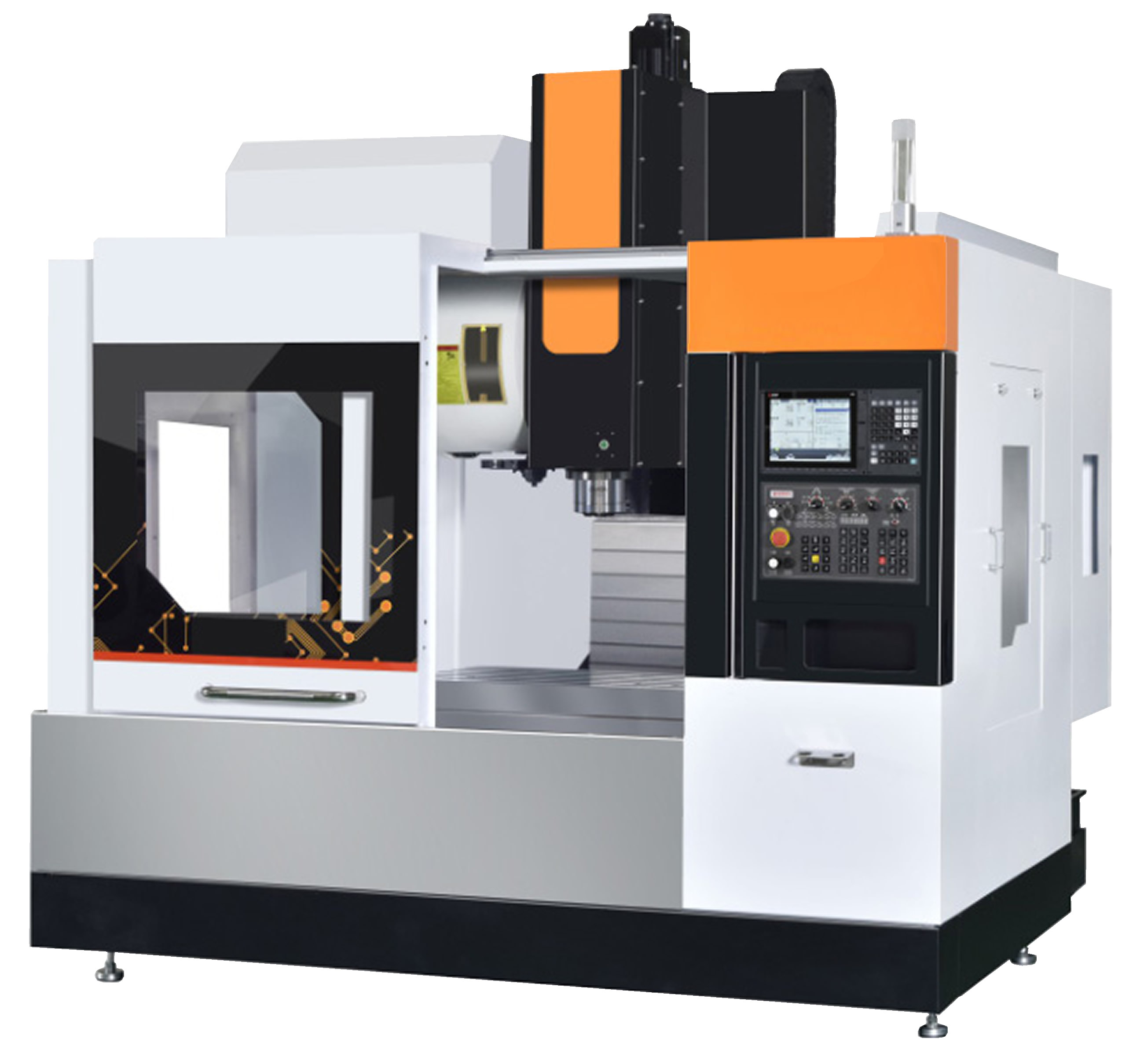

  • 3 Axis Vertical CNC Machining Center

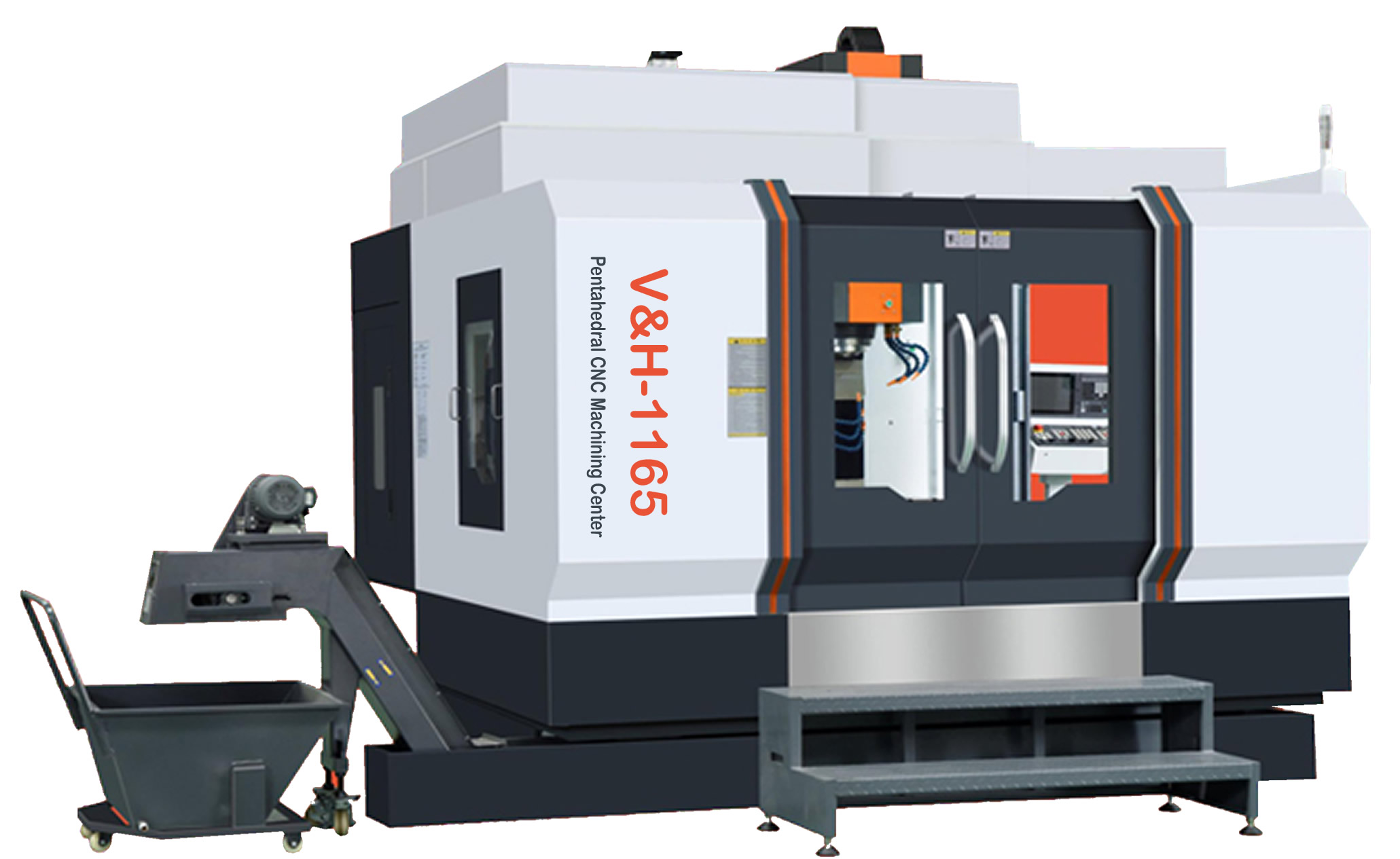

  • 5-axis vertical and horizontal CNC machining center

APPLICATION:

     Vertical CNC machining center is also named cnc milling center machine, It is an efficient, precise and intelligent metal processing equipment. It can automatically change tools and position on three coordinate axes.widely used in automobile, aviation, aerospace, mold, machinery manufacturing and other fields. And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping,boring ,etc.

FEATURES:

1. The major machine components apply finest gray cast iron which are of good shock resistance. All the casts have been done with aging treatment twice, in order to eliminate the internal residual stresses. So that, our machine can work with high rigidity and good shock resistance for heavy cutting and intermittent cutting.

2. Key components are designed with CAD software, in this way, the optimal structure can be analyzed out by computer, which ensure

the good intensity, rigidity and thermal stability.

3. The joint face of components are manually polished well, which guarantees the effective contacting area.

SpecificationsunitVMC855VMC1060VMC1160VMC1380
Numerical control system
SYNTEC /SIEMENS/MITSUBISHI/FANUC/GSK and other operating systems can selected
Table sizemm1000*5501100*6001200*6001400*800
Max.table loadkg450550800800
T slot
5-18*905-18*1005-18*1005-18*100
X axis travelmm800100011001300
Y axis travelmm550600650800
Z axis travelmm550600600700
Distance between spindle center and column surfacemm550600600600
Distance between spindle nose and table surfacemm120-670175-750130-730120-720
Max. spindle speedr/min12000(15000 optional)12000(15000 optional)12000(15000 optional)12000(15000 optional)
Spindle taper/BT40BT40BT40BT40
Spindle drive type/Belt driveBelt driveBelt driveBelt drive
spindle motor powerkw7.57.51111
3 axis motor powerkw2.0/2.0/3.02.0/2.0/3.03.0/3.0/3.03.0/3.0/3.0
X/Y/Z axis rapid traversem/min48/48/4848/48/4848/48/4848/48/48
Feed moving velocity X, Y, Zm/min10-Jan175-750130-730120-720
X/Y/Z guide rail form/3 axis linear guide rail3 axis linear guide rail3 axis linear guide rail3 axis linear guide rail
Automatic tools changerset24 arm ATC24 arm ATC24 arm ATC24 arm ATC
Max.tool weightkg7777
Tools Diameter/Lengthmm78/30078/30078/30078/300
Tool change times7/2.47/2.47/2.47/2.4
Position accuracymmJIS±0.005JIS±0.005JIS±0.005JIS±0.005
Repeat positioning accuracymmJIS±0.003JIS±0.003JIS±0.003JIS±0.003
Machine dimensionmm2500*2300*26002800*2400*27003400*2400*27003000*2800*3000
Machine weight (approx.)kg5000560065008000
(VMC from small to big size, the web pages are limited, so please contact us for more details,customized requests are super warmly welcome)
