Multi-cut Precision Wire Cutting EDM
您的位置: 首頁 > 機床產品 > Multi-cut Precision Wire Cutting EDM
Multi-cut Precision Wire Cutting EDM
發布時間:2024-10-28瀏覽次數:71
  • 430/540AC servo multiple cutting machine
  • 650/860/1080AC servo multiple cutting machine
  • 5-axis servo multi-cutting machine
  • 30-90 degree large taper multiple cutting machine
  • 90 degree large taper
  • 650AC servo multiple cutting machine

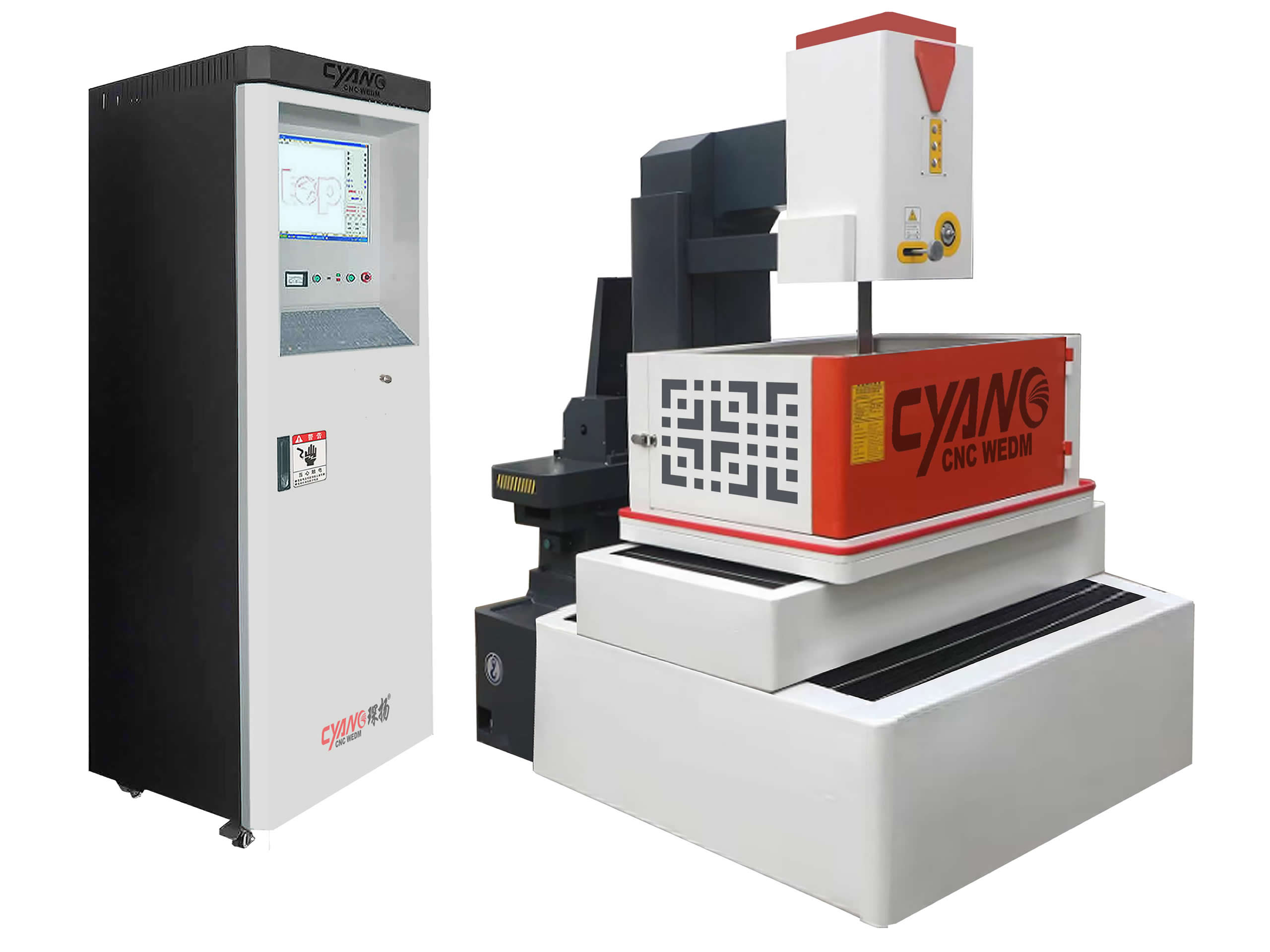

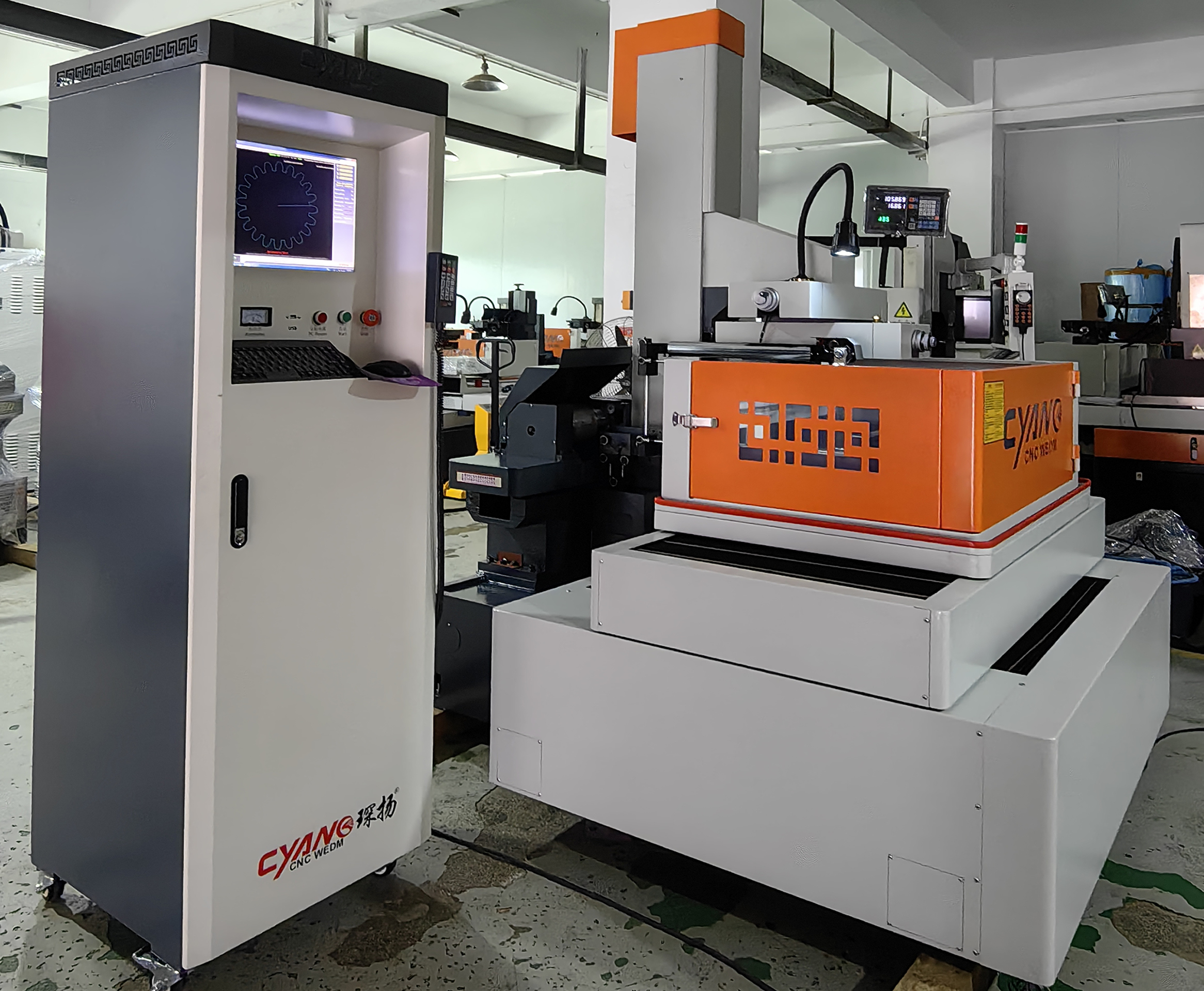

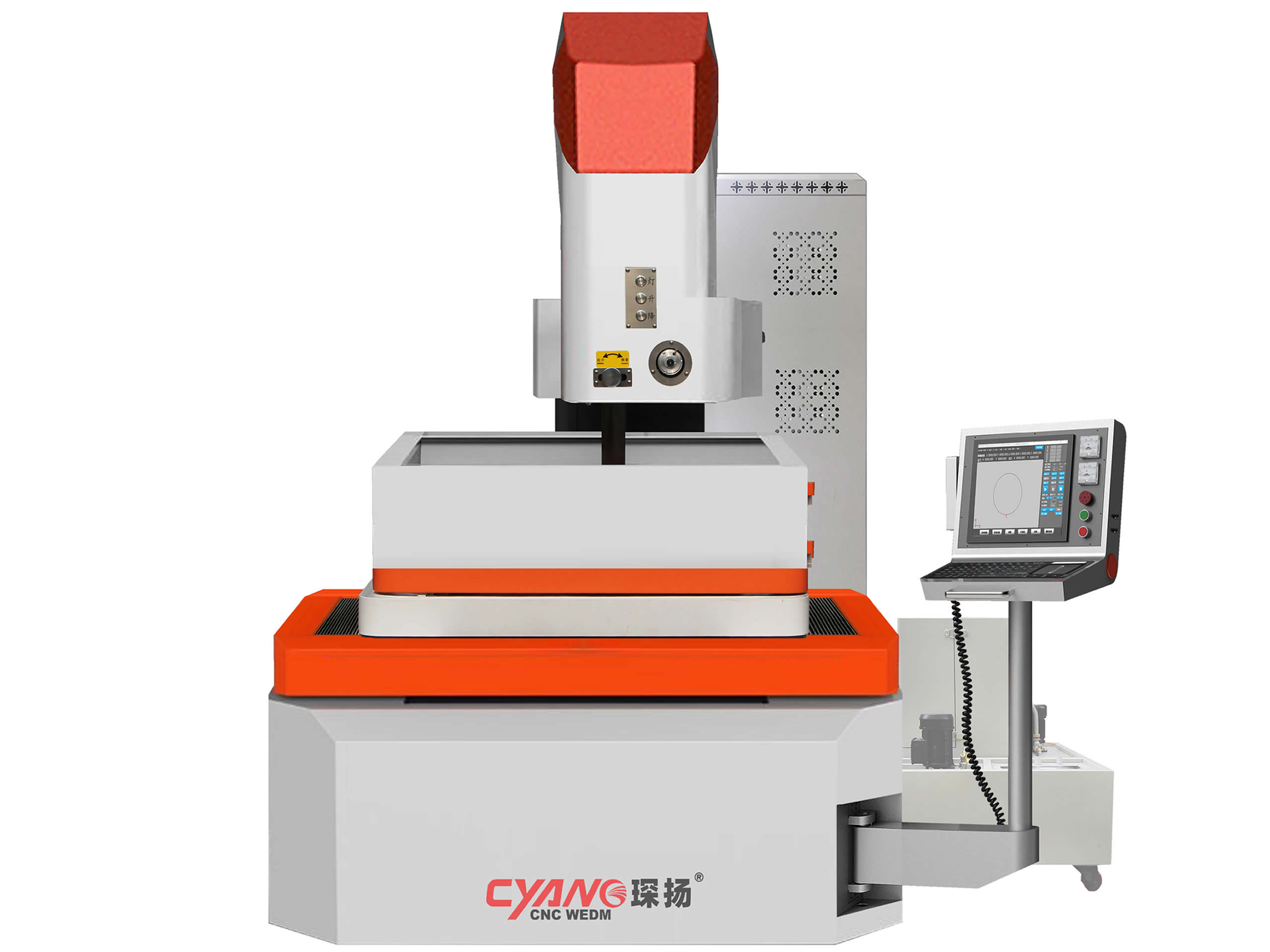

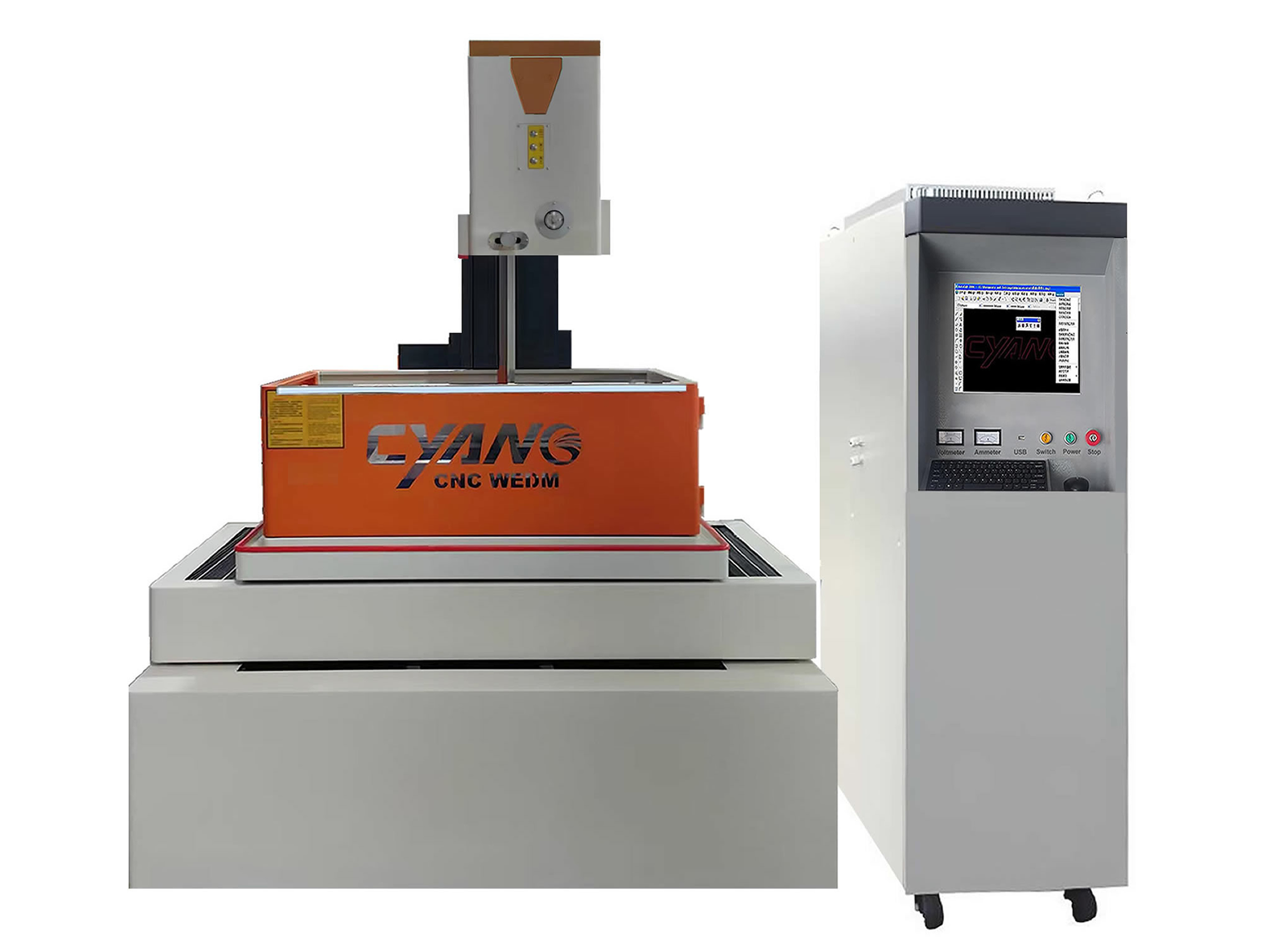

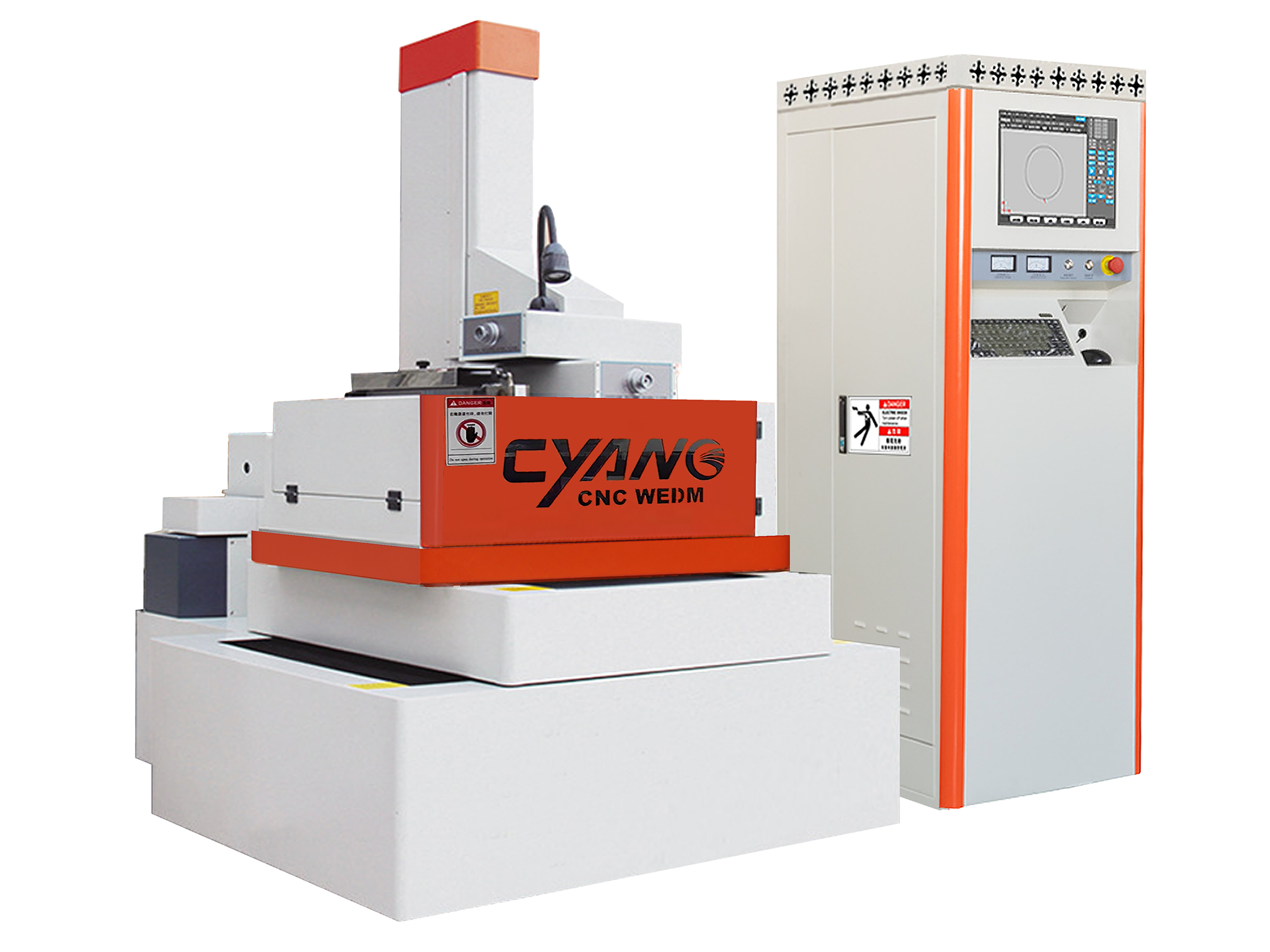

Multiple cut Precision Wire Cutting Machine
Multiple cutting Medium speed wire cut EDM is a new generation of EDM machines . With Multi-cutting functions (and low-speed Brass wire cutting machine works the same principle), the quality of processing also tends to low-speed brass wire cutting machine, but the cost is only 1/10 of the low-speed brass wire wire cutting machine is the most cost-effective model.This type is popular machines. The machine is driven by stepping motor or AC servo motor, Affordable prices.
INTELLIGENT CNC SYSTEM
①This new designed Autocut software is the unique software for WEDM running on the condition of windows . It is use graphic drive technology and auto-program, user doesn’t need to contact the code, only need to set the processing technics for the graphic. meanwhile,support 3B and G code generated by other WEDM software.upgrade the efficiency of working, reduce the mistakes.
② Adopt High Performance Industrial computer, P4 or better, 4G RAM, 1000G Harddisk, support INTERNET, with 17"LED Color Monitor.
③To achieve a fast and convenient computer communication network, through network technology, graphics, data and program transmission, can be directly controlled by the technical design department since the first establishment of a program.
⑤Embedded Control system can be smoothly connected with many design software such as AUTOCAD & etc. Fulfill integration of CAD/CAM.
⑥Adopt 4 axes linkage control technic to process taper workpiece. Process the top and bottom shaped taper conveniently, make the complicated processing easy and exactly.Process track with 3D designed.
⑦XY axis the drive motor be set at AC servo motor. The search function of mechanical origin enable the transmission screw pitch compensation, in order to greatly improve the positioning accuracy.
⑨With a large storage capacity database, which accumulated from many experiences. User can choose the suitable parameter according to deferent working conditions. Users can adjust machining parameters to establish a database at any time according to their own experience.
⑩Pulse power of the control parameters directly from the software to control and improve the ability of pulsed power output of the interference, thereby increasing the roughness of workpiece, reducing the loss of molybdenum wire, you can choose a variety of pulse waveforms for a variety of processing conditions, improve the cutting ability of the workpiece. Simplifies the operation buttons on the control panel, a large number of button functions directly controlled by software to achieve.

Product parameters

Machine body

MS-430AC

MS-540AC

MS-650AC

MS-860AC

MS-1080AC

Worktable stroke(X,Y,Z)

400×320×300mm

500×400×300mm

600×500×400mm

800×600×400mm

800×1000×400mm

Worktable size  (W×D)

780×630mm

880×670mm

1100×780mm

1210×880mm

1500×1050mm

The oil tank size (W*D*H)

920×680×400mm

1020×720×400mm

1240×830×400mm

1350×930×400mm

1650×1100×400mm

Travel U、V

70×70mm

70×70mm

70×70mm

70×70mm

70×70mm

Max. taper angle / plate thickness

6-12 degree / 80mm

6-12 degree / 80mm

6-12 degree / 80mm

6-12 degree / 80mm

6-12 degree / 80mm

Max. cutting thickness

300mm

300mm

300mm

400mm

400mm

Max. workpiece weight

400kg

500kg

650kg

1000kg

1000kg

Max. workpiece dimension

750×550×300mm

850×600×300mm

1050×700×400mm

1200×800×400mm

1510×970×400mm

Wire Speed

1.18-11.18m/s

Diameter of wire

Dia.0.16~0.22mm

Wire tension

10-30N

Positioning accuracy

±0.008mm(ISO14137-2015,JB-T 11999.1-2014)

Repeatable accuracy

±0.005mm(ISO14137-2015,JB-T 11999.1-2014)

Precision machining

Octagon±0.006mm(JB-T 11999.1-2014)Taper±0.03mm(JB-T 11999.1-2014)

Machine dimension (W×D×H)

1650×1250×2100mm

1700×1400×2100mm

2050×1680×2100mm

2200×1960×2300mm

2500×2000×2300mm

Machine weight

1650Kg

1850Kg

2200Kg

2900Kg

3500Kg

Water tank

Working liquid box dimension

130L/870×470×320mm

Working Methode

Filtration System

Filter accuracy

0.01mm

Working liquid

Water-Soluble WEDM Concentrate

Pulse Power

Control box dimension

580x580x1890mm

Control box weight

140kg

Max. Cutting Currrent

10A

Max cutting speed

150-300mm2/min(it is different for different material and thickness

Best Surface Finish

Ra≤0.85-1.6μm(it is different for different material and thickness)

CNC System

Operating system (OS);

Windows 7 & Windows 10

CNC Control system

Autocut

Drawing Programming system

NCCAD,AutoCAD

Hardware Configurations

Asus computer(8GB RAM, 1TB HDD), 17”LCD display, Yaskawa AC servo driver system

Control method and axis

4 axis Control simultaneous program

Single pulse advancing accuracy

0.001mm

Data Port

USB, LAN

Programming Code

3B/ ISO/G code

Menu Language

Chinese/English/Russian/Japanese

Dimension

Metric/Inch

Power Supply

Rated Voltage

AC~,3N,380V±10% ,50/60Hz

Other Voltage

220V/415V

Ratde Power

2.5KVA

Working temperature

5-40℃

Relative humidity

40%~80%
